Duplo Flatbed Cutting Solutions Ideal For Digital Print And Packaging Applications

764
Duplo Flatbed Cutting Solutions Feature Numerous Applications

Duplo’s compact and cost effective flatbed cutting solutions offer a way to differentiate businesses and their design ideas from competitors.

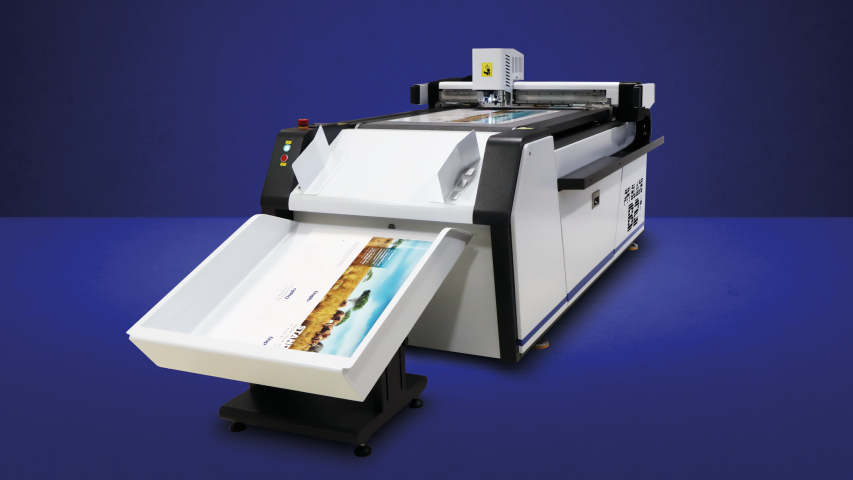

Duplo’s PFi Blade digital cutter has been designed specifically for short run, on demand digital print and packaging applications. Finish a variety of shaped products for packaging and label productions, including adhesive sheets, specially designed greeting and business cards, invitations, small packages, tags and sample pieces. With its universal tool holder, users can cut, kiss, die cut and crease a variety of paper and card stocks without the need for expensive dies.

PFI B2+ features and benefits

– No physical dies required.
– Affordable and versatile solution for short-run production, sample making and prototyping designs (irregular shapes).
– Automated material feeding system.
– Easy job preparation and set-up; PFI Blade Connect Software.
– CCD camera automatic registration system.
– Compact cutting heads.

Duplo Flatbed Cutting Solutions Feature Numerous Applications

PFI B2+ specifications

– Maximum sheet size: 800 x 600mm.
– Minimum sheet size: 210 x 279mm.
– Feeder capacity: 100mm, 12-45 seconds per sheet (dependent on complexity).
– Cutting thickness up to 6mm.
– Maximum cutting speed up to 1200mm per second.

PFI B3+ features and benefits

– No dies required.
– Easy job preparation and set-up.
– Automated Feed System.
– CCD registration system.
– Universal Tool Holder.
– Compact and Affordable.
– Intuitive software platform.
– QR code module automates and accelerates production.

PFI B3+ specifications

– Maximum sheet size: 600 x 400mm.
– Minimum sheet size: 210 x 279mm.
– Feeder capacity: 100mm, 30-45 seconds per sheet (dependent on complexity).
– Cutting thickness up to 1.3mm.
– Maximum cutting speed up to 800mm per second.



ALTRON DOCUMENT SOLUTIONS
+27 11 928 9111
hotline.marketing@bdsol.co.za
www.altron.com
www.bytesdocumentsolutions.co.za
