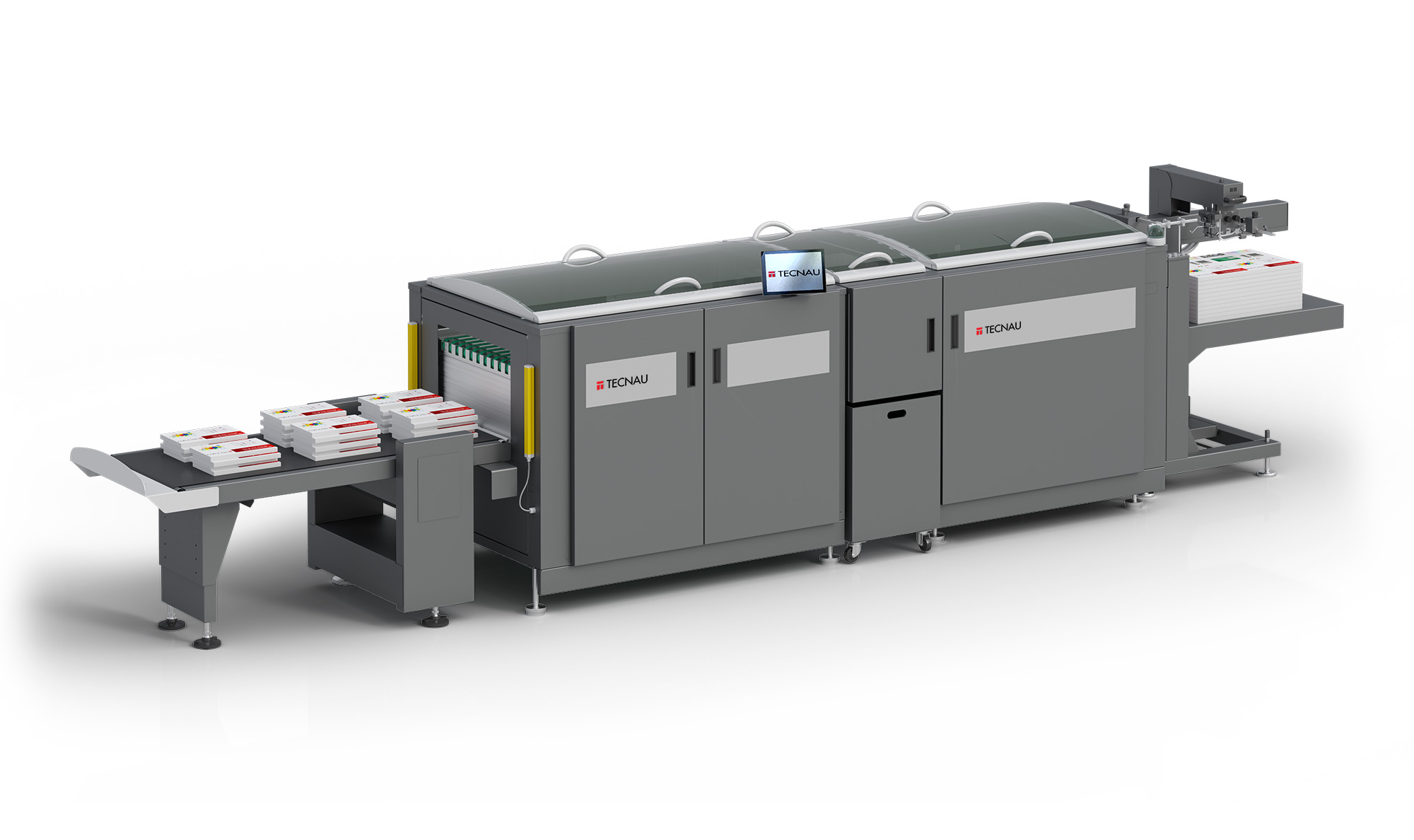

Tecnau’s Stack 1212 system.

Tecnau’s Stack 1212 system – for cutting and stacking multi-up printed B2/B2+ sheets down to final finished size – reduces manual print handling and consolidates cut/trim finishing in a single-pass automated process.

Specifications include: support for up to 21-up impositions and paper weights up to 350gsm, while running at speeds up to 6000 input sheets per hour. Stack 1212 can be used to cut postcards, letters, books, brochures and calendars down to size.

Stack 1212’s Cutter c12 trims outer edges and supports gutter removal and double cuts for bleed applications as well as simple single-slitting and single cross-cuts. The module features cartridge-based cross-cut blades and trim slitters for fast and easy application changes. The cutter offsets the entire sheet to separate jobs or book blocks. Following the cutter, sheets enter the Stacker s12, gliding smoothly onto the building stack. Each job can be delivered to the conveyor one at a time, individually offset within the stack or delivered when the operator-programmed stack height is reached.

In addition to this sheetfed solution, Tecnau will also features its latest generation offering for cutting and stacking output from high-speed continuous web inkjet presses, showing the Revolution 50 Stack 5251L.

Featuring the just-launching Unwinder u50, Tecnau’s Stack 5251L accommodates the broad range of papers and heavy ink coverages characteristic of the demanding graphic arts applications migrating to inkjet print as enabled by the emerging generation of high-speed inkjet presses.

The Revolution 50 Stack 5251L includes a number of unique features: Retractable cut section for quick jam clearance and quick changes of the long-life cutter blade; minimal footprint compared to competitive systems, to better fit in tight spaces; dynamic web aligner for a smooth, stable web flow and reliable handling and adjustable decurler to aid in handling of challenging heavy and light papers.

The system’s Stacker s51L incorporates vacuum belts to support a broad range of applications and media up to a 76.2cm (30”) maximum cut length. Stack 5251L features next generation controls for compatibility with the ‘Internet of Things’ (IoT). The system includes natural-language error reporting on the user screen and onboard diagnostics to help keep the system up and running. IoT options are available for remote monitoring and diagnostics, automatic software updates and preventive maintenance aids. These solutions will be featured at PRINTING United 2022.
