The NOVAFOIL 106 is the first hot foil stamper from BOBST that can apply foil in both directions: inline and across the sheet running direction.
The machine configuration allows hot foil stamping with up to eight reels for line and four reels for cross-foiling. This allows production of highly sophisticated packaging designs in a single machine run.
Offsetdruckerei Schwarzach is an offset printing company known throughout Europe for the finest quality high-end packaging for premium chocolates, cosmetics and other products. This made it the ideal location to beta test the NOVAFOIL 106 hot foil stamping machine from BOBST.

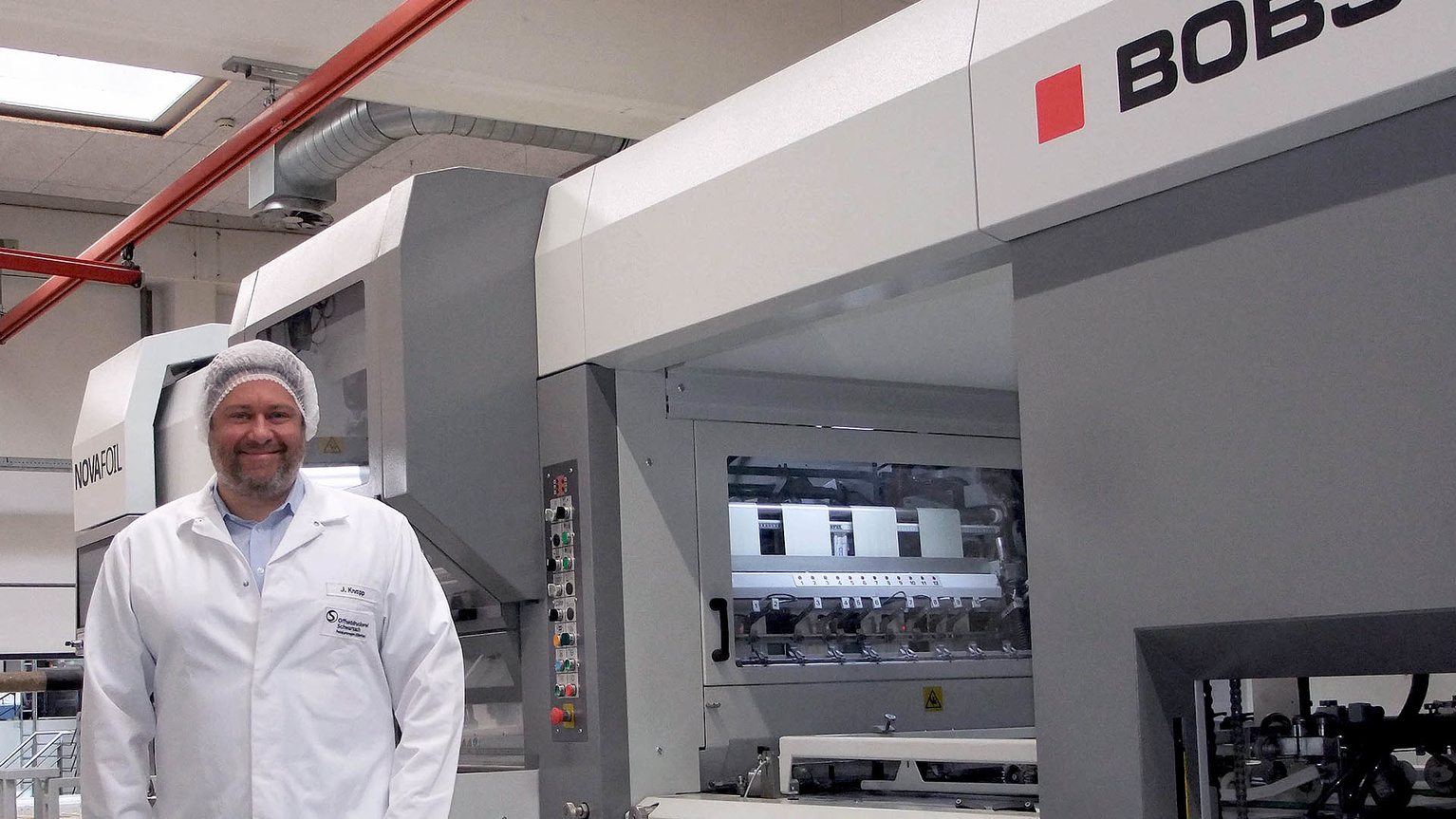

The NOVAFOIL 106 at the Schwarzach facility is equipped with all 12 foil reels. ‘We use the NOVAFOIL 106 for long runs with boxes which have large surfaces that need to be embellished. The machine gives us very high productivity with impressive finished product quality,’ said the company’s CEO Johannes Knapp.
He thinks the newly developed platen press is the highlight of the machine. With this, BOBST has increased the dwell time between the die with the foil and the sheets. The longer dwell time combined with an even temperature and a higher pressure perfectly enhance the high quality of the embellishment. This applies to delicate finishes as well as large-area embellishments.
‘We’d been hoping that the innovative technology in the NOVAFOIL 106 would help us increase hourly output in hot foil stamping. That’s exactly what happened. Depending on the complexity of the finish, the machine easily operates at speeds of up to 8,000 sheets per hour for large runs,’ said Knapp.
At all speeds, the sheets travel through the machine with absolute stability. To make that possible, BOBST adapted the gripper bar advance system of the NOVAFOIL 106 to ensure outstandingly even sheet travel with optimal sheet delay. In addition, the latest-generation feeder ensures constant sheet feeding and the highest register precision. For embossing, debossing or hot foil stamping, stable sheet travel is also a key factor in flawless quality and productivity.
Knapp said, ‘We use the NOVAFOIL 106 for long runs with boxes which have large surfaces that need to be embellished. It gives us very high productivity with impressive finishing quality.’
He continued, ‘With the new hot foil stamping machine, we can run different colours inline and cross-foil. Moreover, the eight inline foil reels give us flexible options for optimising the foil advance. On certain jobs, the use of cross foiling helps us to further optimise the foil advance and reduce foil consumption even more. Depending on the job, we may have 30% to 40% lower foil consumption than before.’ This is not only cost-efficient but supports the sustainability of the packaging and the process.
Offsetdruckerei Schwarzach also achieves these savings by using the Optimal Advance Computer System (OACS) which automatically calculates the ideal foil advance. BOBST has included this system as an option on the NOVAFOIL 106. ‘The calculations are flawless. So far, there’s been no complaint that too much or too little foil was provided,’ Knapp affirmed.
The higher production speed also allows more sheets to be processed with the same energy consumption. ‘Calculated at 1,000 sheets, this machine uses 20% less electricity. This is another way in which it supports our sustainability strategy,’ Knapp explained.
A specially developed lift system for heavy foil reels facilitates the work of machine operators, as they do not have to lift the reels into the machine. With this, and the high level of automation associated with the NOVAFOIL 106 – for example with the semi-automatic foil reel change – set up and changeover times have been shortened.
The operators like working with the new machine. The SPHERE human-machine interface provides easy, intuitive navigation through the functionalities. Repeat orders are up automatically. Ergonomics and user-friendliness allow easy access to all functions and settings, including the platen section. For quality control, operators can safely and easily remove samples from the machine without stopping it.
In their meeting room, Offsetdruckerei Schwarzach displays a range of packaging they have produced for their customers. Most of them were enhanced with hot foil stamping, some prelaminated, blind and structurally embossed, and laser cut. The company embellishes a great number of packaging with two films, and some even with three films.
Knapp said, ‘Of course, from an economic point of view, we also need mass production business — which requires technology that allows the highest quality and efficiency. Even in that regard, the NOVAFOIL 106 fits seamlessly into our process.’ The same goes for the machine’s 1060 x 760mm sheet format, which the packaging manufacturer also prints and cuts. They generally use the NOVAFOIL 106 to process solid cardboard in weights of 300 to 400g/sqm. That includes recycled cardboard.
‘The latest technology, such as the NOVAFOIL 106, allows us to run our customers’ orders at more competitive prices,’ explained Knapp, showing the investment from another angle. The fact that the new hot foil stamper already runs in two to three shifts also shows that the investment was needed.
‘We will connect one of the BOBST machines to BOBST Connect to explore what additional possibilities this cloud-based platform offers for further optimising our processes,’ predicts Knapp. With its vision for the industry built around digitisation, automation, connectivity and sustainability, BOBST has once again shown its orientation toward the future.
